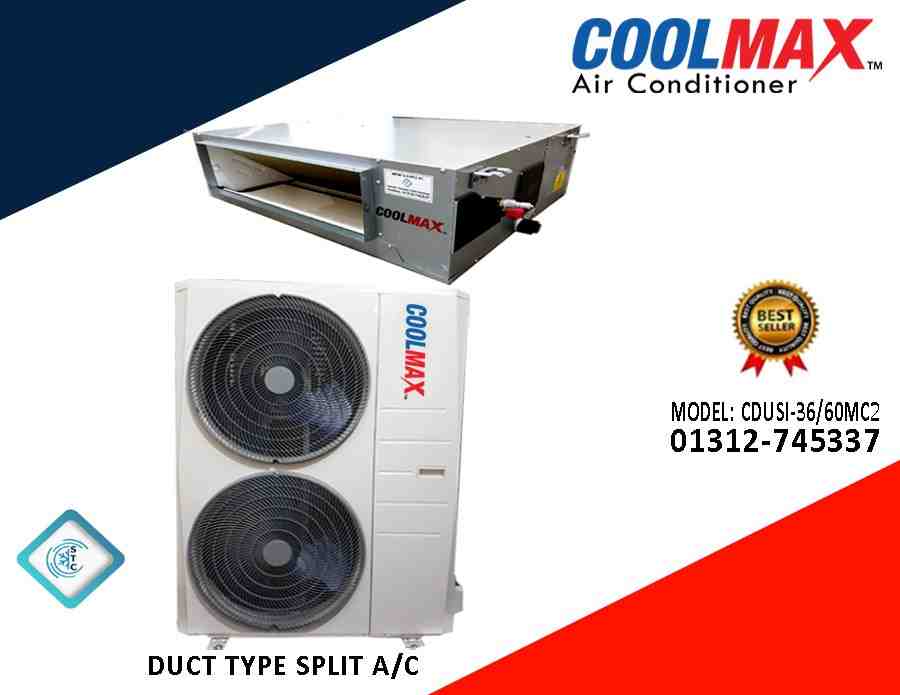

Unit Type : Split Duct Type (Non-Inverter)

Unit Model : CDUSI-36MC2

Capacity : 36000 BTU/H (3.0 Ton)

Power Input: 3938 Watt

Rated Current: 6.10 Amp

EER: 2.90 W/W

Power Supply : 380-415V/3Ph/50Hz

Max. Power Consumption: 5340 Watt

Max. Current: 10.3 Amp

Compressor: Scroll (Panasonic/Lamda/Sanny)

Air-Flow (H/M/L): 1804/1500/1260 m3/h

Indoor Noise Level (H/M/L): 50/46/40 db(A)

Outdoor Noise Level (H/M/L): 62 bd(A)

Refrigerant : R-410a

Operating Temperature: 17-30 C

Copper Pipe (Discharge & Suctions) Size : 3/8 - 3/4 Inc.

Indoor Body Dimension (WxDxH) with Wight: 1200x874x300 mm / (44Kg)

Outdoor Body Dimension (WxDxH) with Wight: 910x360x1220mm / (88Kg)

Outdoor base hole to hole (WxD) : 615 x 380mm

Thermostat Controller Type: Wireless Remote

Origin by: China

Note: The above design & Specification are subject to change without prior notice for product improvement.

Warranty: 2 (Two) Year’s Compressor Replacement Guaranty, 1 (One) Year Spear Parts Warranty and 01 (One)Year Free Service.

Transport Cost: Free (Inside of Dhaka City Area).

Installation Cost: Included

Copper pipe with Insulation and Indoor to Outdoor Power Cable: 10 Feet (Free)

Note: If the customer or company does not follow the rules or does not use the correct tonnage in the correct space. Then our company Air-conditioner warranty will not apply. Generally, 1 ton per 120 sq. ft. in residence area and 1 ton per 100 sq. ft. in commercial areas.

Import & Supply by: Sikder Trading Corporation.
