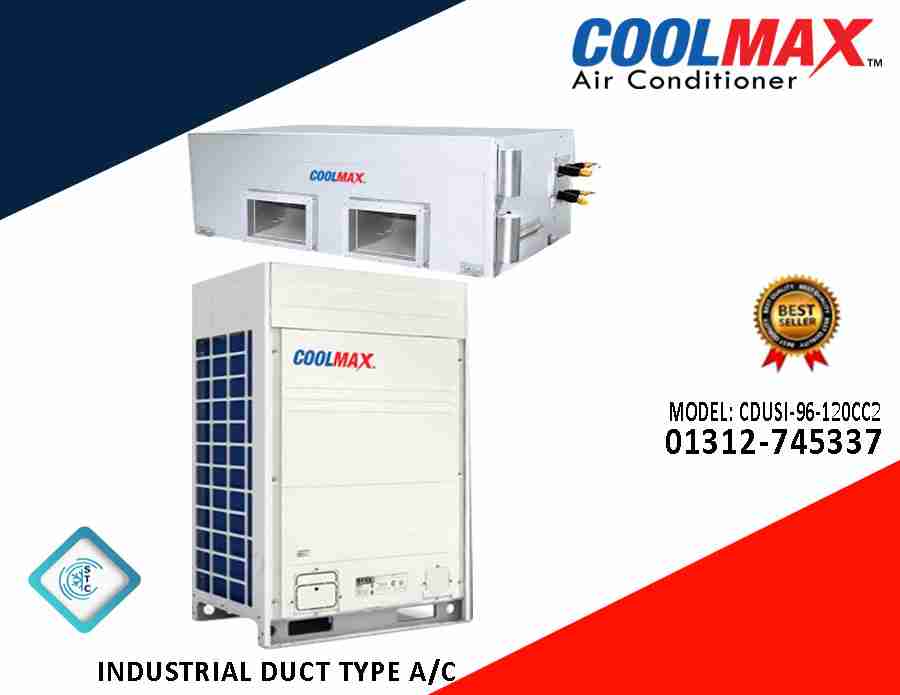

Unit Type: Industrial Duct Type Air-conditioner

Model: CDUSI-120CC2

Capacity: 105,000 BTU/H (9.0 Ton)

EER (W/W): 2.66

Refrigerant: R-410a

Refrigerant Pipe (Liquid/Gas): (9.52/19.05)x2 mm

Application Area: 140-187 M2

Indoor Information:

Indoor Power Supply: 220-240V/1Ph/50Z

Air Flow (H/M/L):  4800/4000/3500 12000 m3/h

Static Pressure: 120 Pa

Indoor Noise Level: 55/50/45 db

Indoor Dimension (WxHxD): 1440x811x448 mm

Net / Gross Weight: 103/107 Kg

Drainage pipe: 25 mm

Outdoor Information:

Outdoor Power supply:  380-415V/3Ph/50Hz

Input Power: 9600

Outdoor Air flow: 12000 m3/h

Outdoor Noise Level: 63 db

Outdoor Dimension (WxHxD): 974x1618x766 mm

Net/Gross Weight: 200/206 Kg

Max. Refrigerant Pipe: 50 m

Max. Difference in Level: 20 m

Outdoor Type: Top Discharge

Origin by : China

Manufacturing by : China

Warranty: 2 (Two) Year’s Compressor Warranty, 1 (One) Year Spear Parts Warranty and 01 (One)Year Free Service.

Transport Cost: Free (Inside of Dhaka City Area).

Installation Cost: Included

Copper pipe with Insulation and Indoor to Outdoor Power Cable Free: 10 Feet

Note: If the customer does not follow the rules or does not use the correct tonnage in the correct space. Then our company Air-conditioner warranty will not apply. Generally, 1 ton per 120 sq. ft. in residence area and 1 ton per 100 sq. ft. in commercial areas.2

Import & Supply by: Sikder Trading Corporation
