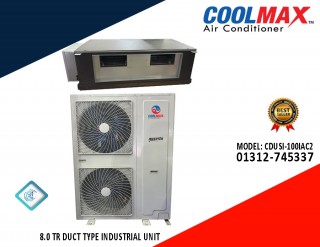

Unit Type: Industrial Duct Type Inverter Air-conditioner

Model: CDUSI-100IAC2 or MDC-V100HZR1

Capacity: 100,000 BTU/H (8.33 Ton)

EER (W/W): 2.87

Refrigerant: R-410a

Refrigerant Pipe (Liquid/Gas): 9.53/22.22 mm

Application Area: 72-80 M2

Indoor Information:

Indoor Power Supply: 220-240V/1Ph/50Z

Air Flow (H/M/L):  4400/3800/3300 12000 m3/h

Static Pressure: 120 Pa

Indoor Noise Level: 55/50/45 db

Dimension (WxHxD): 1440x811x448 mm

Net / Gross Weight: 95/100 Kg

Drainage pipe: 25 mm

Outdoor Information:

Outdoor Power supply:  380-415V/3Ph/50Hz

Input Power: 12500W

Outdoor Air flow: 12000 m3/h

Outdoor Noise Level: 61 db

Outdoor Dimension (WxHxD): 1120x1560x400 mm

Net/Gross Weight: 146/152 Kg

Max. Refrigerant Pipe: 40 m

Max. Difference in Level: 18 m

Outdoor Type: Side Discharge

Origin by : China

Manufacturing by : China

Warranty: 2 (Two) Year’s Compressor Warranty, 1 (One) Year Spear Parts Warranty and 01 (One)Year Free Service.

Transport Cost: Free (Inside of Dhaka City Area).

Installation Cost: Included

Copper pipe with Insulation and Indoor to Outdoor Power Cable Free: 10 Feet

Note: If the customer does not follow the rules or does not use the correct tonnage in the correct space. Then our company Air-conditioner warranty will not apply.  Generally, 1 ton per 120 sq. ft. in residence area and 1 ton per 100 sq. ft. in commercial areas.

Import & Supply by: Sikder Trading Corporation.
